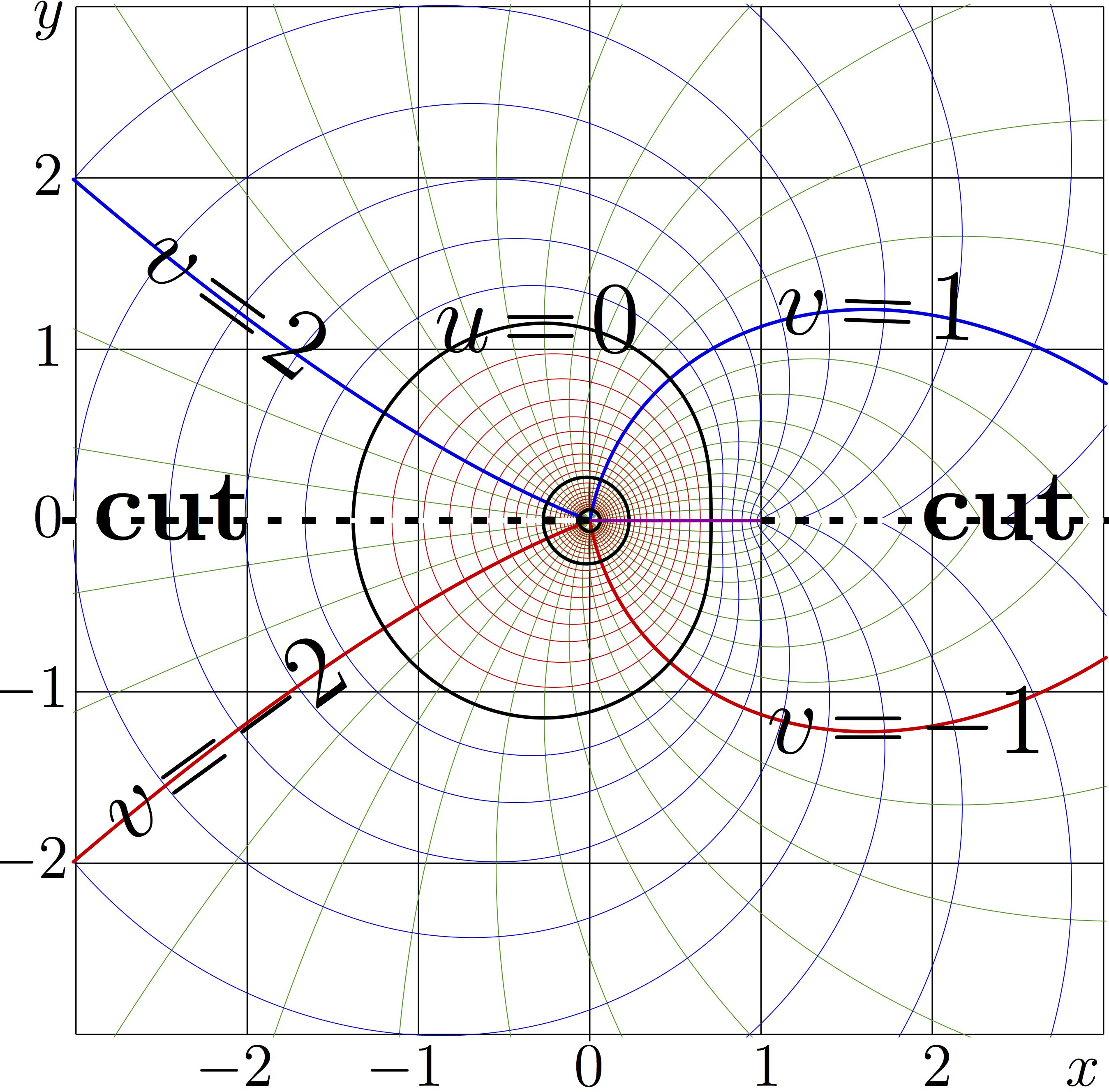

Complex map of the inverse of logistic sequence with parameter \(s\!=\!4\) :

\[ u+\mathrm i v= \mathrm{ArcLogisticSequence}_4(x\!+\!\mathrm i y) \]

This map appears as Fig.7.8 at page 79 of book «Superfunctions»^[1][2]
in order to show that the Holomorphic extension of the logistic sequence ^[3] is not so chaotic.

C++ generator of map

#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include <complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
#include "conto.cin"
#include "efjh.cin"
/*
z_type arccos(z_type z){ return -I*log(z+I*sqrt(1.-z*z)); }
z_type coe(z_type z){ return .5*(1.-cos(exp((z+1.)/LQ))); }
z_type boe(z_type z){ return LQ*log(arccos(1.-2.*z))-1.; }
z_type doe(z_type z){ return coe(1.+boe(z));; }
*/
int main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d;
  int M=201,M1=M+1;
  int N=201,N1=N+1;
DB X[M1],Y[N1], g[M1*N1],f[M1*N1], w[M1*N1]; // w is working array.
char v[M1*N1]; // v is working array
FILE *o;o=fopen("logi2d4.eps","w");ado(o,124,124);
fprintf(o,"62 62 translate\n 20 20 scale\n");
DO(m,M1) X[m]=-3.+.03*(m-.5);
DO(n,N1) Y[n]=-3.+.03*(n-.5);

for(m=-3;m<4;m++){if(m==0){M(m,-3.04)L(m,3.04)} else{M(m,-3)L(m,3)}}
for(n=-3;n<4;n++){         M(  -3  ,n)L(3,n)}
fprintf(o,".008 W 0 0 0 RGB S\n");

maq(4.);
DO(m,M1)DO(n,N1){g[m*N1+n]=9999; f[m*N1+n]=9999;}
DO(m,M1){x=X[m]; //printf("%5.2f\n",x);
DO(n,N1){y=Y[n]; z=z_type(x,y);
//      c=E(H(z))-1.;
//      c=F(1.+E(0.1*z));
        c=E(z);
//      c=F(.5+E(z));
//      c=boe(z);
//      c=.5*(1.-cos(exp((z+1.)/LQ)));
//      d=H(F(z-1.));
//      p=abs(c-d)/(abs(c)+abs(d));  p=-log(p)/log(10.)-1.;
//      if(p>-4.9 && p<20) g[m*N1+n]=p;
        p=Re(c);q=Im(c);
        if(p>-4.9 && p<4.9)     {g[m*N1+n]=p;}
//      if(q>-4.9 && q<4.9)     {f[m*N1+n]=q;}
        if(q>-4.9 && q<4.9 && fabs(q)>1.e-11 )  {f[m*N1+n]=q;}
                        }}

fprintf(o,"1 setlinejoin 1 setlinecap\n");
//p=.8;q=.4;
p=2.;q=.5;
//#include"plof.cin"
for(m=-3;m<3;m++)
for(n=1;n<10;n+=1)conto(o,f,w,v,X,Y,M,N, (m+.1*n),-q,q);fprintf(o,".005 W 0 .6 0 RGB S\n");
for(m=0;m<2;m++)
for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);fprintf(o,".005 W .9 0 0 RGB S\n");
for(m=0;m<2;m++)
for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);fprintf(o,".005 W 0 0 .9 RGB S\n");

for(m= 1;m<5;m++) conto(o,f,w,v,X,Y,M,N, (0.-m),-p,p);   fprintf(o,".02 W .9 0 0 RGB S\n");
for(m= 1;m<5;m++) conto(o,f,w,v,X,Y,M,N, (0.+m),-p,p);   fprintf(o,".02 W 0 0 .9 RGB S\n");
for(m=-4;m<5;m++) conto(o,g,w,v,X,Y,M,N, (0.+m),-p,p);   fprintf(o,".02 W 0 0 0 RGB S\n");

                  conto(o,f,w,v,X,Y,M,N, (0.  ),-p,p);   fprintf(o,".02 W .6 0 .6 RGB S\n");

fprintf(o,"0 setlinejoin 0 setlinecap\n");

M(-3.02,0)L(0,0)
//M(1.-1./Q,0)L(3,0)
M(1.,0)L(3,0)
fprintf(o,"0.03 W 1 1 1 RGB S\n");
for(n=0;n<16;n++) {M(-.2*n,0)L(-.2*(n+.4),0)}
for(n=0;n<12;n++) {     M(1+.2* n,0)
                        L(1+.2*(n+.4),0)}
fprintf(o,"0.04 W 0 0 0 RGB S\n");

fprintf(o,"showpage\n%c%cTrailer",'%','%'); fclose(o);
        system("epstopdf logi2d4.eps"); // for linux
        system(    "open logi2d4.pdf"); // for mac
        getchar(); system("killall Preview");
}

Latex generator of labels

\documentclass[12pt]{article}
\usepackage{geometry}
\usepackage{graphics}
\usepackage{rotating}
\paperwidth 130pt
\paperheight 128pt
\topmargin -102pt
\oddsidemargin -91pt
\newcommand \sx {\scalebox}
\newcommand \ing \includegraphics
\newcommand \rot {\begin{rotate}}
\newcommand \ero {\end{rotate}}
\begin{document}

\newcommand \axes {
\normalsize
\put(  5,126){\sx{.6}{$y$}}
\put(  5,106.4){\sx{.6}{$2$}}
\put(  5, 86.4){\sx{.6}{$1$}}
\put(  5, 66.4){\sx{.6}{$0$}}
\put( 0, 46.4){\sx{.6}{$-1$}}
\put( 0, 26.4){\sx{.6}{$-2$}}
\put( 24,  2){\sx{.6}{$-2$}}
\put( 44,  2){\sx{.6}{$-1$}}
\put( 68.4,  2){\sx{.6}{$0$}}
\put( 89.2,  2){\sx{.6}{$1$}}
\put(109.2,  2){\sx{.6}{$2$}}
\put(126,  2){\sx{.6}{$x$}}
}
%\begin{picture}(122,122) \put( 4, 4){\ing{logi2c4a}}
\begin{picture}(122,122) \put( 8, 6){\ing{logi2d4}}

\put( 52, 88){\rot{0}\sx{.99}{$u\!=\!0$}\ero}
\put( 17,98){\rot{-36}\sx{.99}{$v\!=\!2$}\ero}
\put( 92, 90.2){\rot{-2}\sx{.99}{$v\!=\!1$}\ero}
\put( 91, 41){\rot{0}\sx{.99}{$v\!=\!-1$}\ero}
\put( 16, 30){\rot{36}\sx{.99}{$v\!=\!-2$}\ero}
{\put(12,66){\bf cut} }
{\put(109,66){\bf cut} }
\axes
\end{picture}
\end{document}
