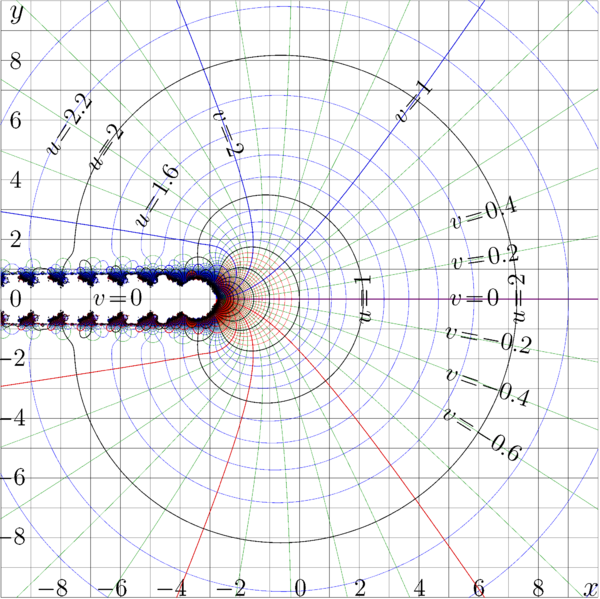

Complex map of the Entire Function with Logarithmic Asymptotic.

This function is defined thought the SuTra function ^[1][2][3]:

\(\Phi(z) = - \ \)SuTra\( (-z) \)

It is shown assuming \(u+\mathrm i v= \Phi(x+\mathrm i y) \) in the \(x,y\) plane with lines \(u=\rm const\) and lines \(v=\rm const\) .

Here, SuTra is Superfunction of the Trappmann function \(\mathrm{tra} = z \mapsto z+\exp(z) \ \).

The Trappmann function has no fixed point. For this reason, it had been considered to be especially interesting in the role of the transfer function: until year 2013, its superfunction had been believed to be very difficult to construct, if at all.

Mnemonic for the filename: function SuTra is Mapped with Negative of its values and Negative of the argument.

C++ generator of the map

/* Files ado.cin, conto.cin, Tania.cin, LambertW.cin, SuZex.cin should be loaded in order to compile the code below. */

 #include <math.h>
 #include <stdio.h>
 #include <stdlib.h>
 #define DB double
 #define DO(x,y) for(x=0;x<y;x++)
 using namespace std;
 #include<complex>
 typedef complex<double> z_type;
 #define Re(x) x.real()
 #define Im(x) x.imag()
 #define I z_type(0.,1.)
 #include "conto.cin"

 #include "tania.cin"
 #include "LambertW.cin"
 #include "SuZex.cin"
 //#include "AuZex.cin"

 z_type tra(z_type z) {return z+exp(z);}

// z_type sutra(z_type z){ if( Re(z)<2. || fabs(Im(z))>2. ) return log(suzex(z));
 z_type sutra(z_type z){ if( Re(z)<2. ) return log(suzex(z));
                                        return tra(sutra(z-1.));}

int main(){ int j,k,m,n; DB x,y, p,q, t; z_type z,c,d, cu,cd;
 //DB x1=-1.1259817765745026; DO(n,8){ y=Re(suzex(x1)); x=y-1.; x1+=-1.2*x; printf("%18.16f %18.16f\n", x1,y);} getchar();
 int M=1001,M1=M+1;
 int N=1001,N1=N+1;
 DB X[M1],Y[N1];
 DB *g, *f, *w; // w is working array.
 g=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 f=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 w=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
 char v[M1*N1]; // v is working array
 FILE *o;o=fopen("SuTraMapM.eps","w");  ado(o,2002,2002);
 fprintf(o,"1001 1001 translate\n 100 100 scale\n");
 fprintf(o,"1 setlinejoin 2 setlinecap\n");
 DO(m,M1) X[m]=-10+.02*(m-.5);
 DO(n,N1) Y[n]=-10+.02*(n-.5);
 //for(n=0;n<N1;n++) { Y[n]=1.09*sinh((3./200.)*(n-200)); printf("%3d %9.6f\n",n,Y[n]); }
 for(m=-10;m<11;m++){M(m,-10) L(m,10)  }
 for(n=-10;n<11;n++){M(  -10,n) L(10,n)}
  fprintf(o,".006 W 0 0 0 RGB S\n");
 DO(m,M1)DO(n,N1){      g[m*N1+n]=999;
                        f[m*N1+n]=999;}
 DO(m,M1){x=X[m]; if(m/10*10==m) printf("x=%6.3f\n",x);
 DO(n,N1){y=Y[n]; z=z_type(x,y); //if(abs(z+2.)>.019)
 // c=AuZex01(z-1.);
 // c=AuZexAsy(LambertW(z))+1.;
 //c=log(suzex(z));
   c=-sutra(-z);
 // p=abs(c-z)/(abs(c)+abs(z)); p=-log(p)/log(10.); if(p>0 && p<17) g[m*N1+n]=p;
  p=Re(c); q=Im(c); if(p>-19 && p<19 && ( x<2. ||  fabs(q)>1.e-12 && fabs(p)>1.e-12) ){ g[m*N1+n]=p;f[m*N1+n]=q;}
        }}
 fprintf(o,"1 setlinejoin 1 setlinecap\n");
  p=1.2;q=.4;
 /*  p=9;q=.16;
  conto(o,g,w,v,X,Y,M,N,(15.3 ),-p,p); fprintf(o,".01 W .4 1 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(15.  ),-p,p); fprintf(o,".02 W 1 0 1 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(14.7 ),-p,p); fprintf(o,".01 W 1 .5 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(14.  ),-p,p); fprintf(o,".01 W .2 .2 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(13.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(12.  ),-p,p); fprintf(o,".03 W 0 0 1 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(11.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N,(10.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (9.  ),-p,p); fprintf(o,".03 W 0 1 1 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (8.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (7.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (6.  ),-p,p); fprintf(o,".04 W 0 .5 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (5.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (4.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (3.  ),-p,p); fprintf(o,".02 W 1 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (2.  ),-p,p); fprintf(o,".01 W 0 0 0 RGB S\n");
  conto(o,g,w,v,X,Y,M,N, (1.  ),-p,p); fprintf(o,".02 W .5 0 0 RGB S\n");
 */
 for(m=-8;m<8;m++)for(n=2;n<10;n+=2)conto(o,f,w,v,X,Y,M,N,(m+.1*n),-q,q);fprintf(o,".007 W 0 .6 0 RGB S\n");
 for(m=0;m<8;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);fprintf(o,".007 W .9 0 0 RGB S\n");
 for(m=0;m<8;m++) for(n=2;n<10;n+=2)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);fprintf(o,".007 W 0 0 .9 RGB S\n");
 for(m= 1;m<17;m++) conto(o,f,w,v,X,Y,M,N, (0.-m),-p,p);fprintf(o,".02 W .8 0 0 RGB S\n");
 for(m= 1;m<17;m++) conto(o,f,w,v,X,Y,M,N, (0.+m),-p,p);fprintf(o,".02 W 0 0 .8 RGB S\n");
                conto(o,f,w,v,X,Y,M,N, (0.  ),-2*p,2*p); fprintf(o,".02 W .5 0 .5 RGB S\n");
 for(m=-16;m<17;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".02 W 0 0 0 RGB S\n");
 // fprintf(o,"0 setlinejoin 0 setlinecap\n");
 // M(-10,0)L(0,0) fprintf(o,"1 1 1 RGB .02 W S\n");
 //#include "plofu.cin"
 fprintf(o,"showpage\n");
 fprintf(o,"%c%cTrailer\n",'%','%');
 fclose(o);  free(f); free(g); free(w);
       system("epstopdf SuTraMapM.eps");
       system(    "open SuTraMapM.pdf"); //for macintosh
       getchar(); system("killall Preview"); // For macintosh
 return 0;
 }

Latex generator of the labels

\documentclass[12pt]{article} % <br>
\paperwidth 2010px
\paperheight 2008px
\textwidth 2394px
\textheight 2300px
\topmargin -100px
\oddsidemargin -70px
\usepackage{graphics}
\usepackage{rotating}
\newcommand \sx {\scalebox}
\newcommand \rot {\begin{rotate}}
\newcommand \ero {\end{rotate}}
\newcommand \ing {\includegraphics}
\newcommand \rmi {\mathrm{i}}
\parindent 0pt
\pagestyle{empty}
\begin{document}
\parindent 0pt
\sx{1}{\begin{picture}(2002,2002)
\put(30,1950){\sx{8}{$y$}}
\put(30,1780){\sx{7}{$8$}}
\put(30,1580){\sx{7}{$6$}}
\put(30,1380){\sx{7}{$4$}}
\put(30,1180){\sx{7}{$2$}}
\put(30,0980){\sx{7}{$0$}}
\put(-22,780){\sx{7}{$-2$}}
\put(-22,580){\sx{7}{$-4$}}
\put(-22,380){\sx{7}{$-6$}}
\put(-22,180){\sx{7}{$-8$}}
\put(120, 6){\sx{7}{$-8$}}
\put(320, 6){\sx{7}{$-6$}}
\put(520, 6){\sx{7}{$-4$}}
\put(720, 6){\sx{7}{$-2$}}
\put(988, 6){\sx{7}{$0$}}
\put(1188, 6){\sx{7}{$2$}}
\put(1388, 6){\sx{7}{$4$}}
\put(1588, 6){\sx{7}{$6$}}
\put(1788, 6){\sx{7}{$8$}}
\put(1958, 6){\sx{8}{$x$}}
\put(0,0){\ing{SuTraMapM}}
%\zoomax
\put(180,1480){\sx{7}{\rot{56}$u\!=\!2.2$\ero}}
\put(322,1430){\sx{7}{\rot{56}$u\!=\!2$\ero}}
\put(480,1238){\sx{7}{\rot{58}$u\!=\!1.6$\ero}}

\put(1518,1238){\sx{7}{\rot{16}$v\!=\!0.4$\ero}}
\put(1518,1104){\sx{7}{\rot{8}$v\!=\!0.2$\ero}}

\put(1350,1590){\sx{7}{\rot{50}$v\!=\!1$\ero}}
\put(710,1632){\sx{7}{\rot{-68}$v\!=\!2$\ero}}
\put(310,0984){\sx{7}{$v\!=\!0$}} \put(1510,0984){\sx{7}{$v\!=\!0$}}

\put(1244,0920){\sx{7}{\rot{90}$u\!=\!1$\ero}}
\put(1762,0920){\sx{7}{\rot{90}$u\!=\!2$\ero}}

\put(1490,876){\sx{7}{\rot{-11}$v\!=\!-0.2$\ero}}
\put(1490,738){\sx{7}{\rot{-19}$v\!=\!-0.4$\ero}}
\put(1480,610){\sx{7}{\rot{-32}$v\!=\!-0.6$\ero}}
\end{picture}}
\end{document}
%
