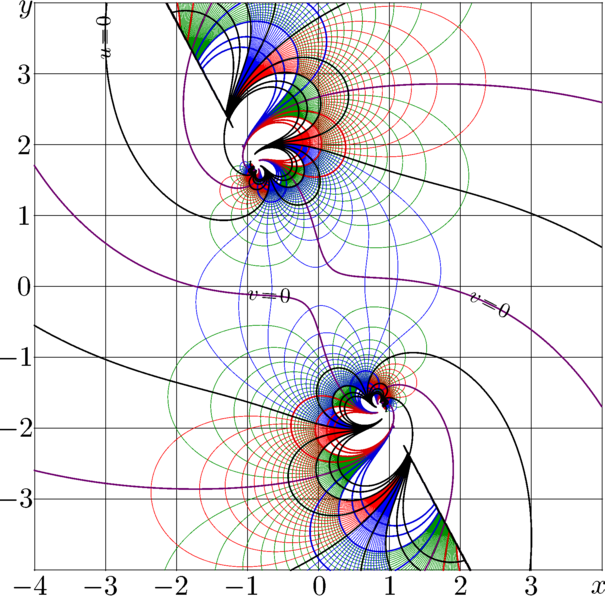

Complex map of the Student Distrinition with \(2+3\mathrm i\) degrees of freedom:

\( u+\mathrm i v = \mathrm{Stident}_5(x+\mathrm i y) \)

C++ generator of curves

// Routines ado.cin and conto.cin and fac.cin should be loaded in order compile the code below

#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#define DB double
#define DO(x,y) for(x=0;x<y;x++)
//using namespace std;
#include<complex>
typedef std::complex<double> z_type;
#define Re(x) x.real()
#define Im(x) x.imag()
#define I z_type(0.,1.)
#include "conto.cin"
#include "fac.cin"

z_type Student(z_type n, z_type t){
z_type c,d,e;
c=fac((n-1.)/2.);
d=fac(.5*n-1.);
e=exp(-.5*(n+1.)*log(1.+t*t/n));
return e*c/(sqrt(M_PI*n)*d);
}

z_type Gau(z_type z){ return exp(-.5*z*z)/sqrt(2*M_PI);}

int main(){ int j,k,m,n; DB x1,x,y, p,q, t; z_type z,c,d, cu,cd;
int M=800,M1=M+1;
int N=800,N1=N+1;
DB X[M1],Y[N1];
DB *g, *f, *w; // w is working array.
g=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
f=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
w=(DB *)malloc((size_t)((M1*N1)*sizeof(DB)));
char v[M1*N1]; // v is working array
FILE *o;o=fopen("Student2i3ma.eps","w");  ado(o,802,802);
//FILE *o;o=fopen("01.eps","w");  ado(o,802,802);
fprintf(o,"401 401 translate\n 100 100 scale\n");
fprintf(o,"1 setlinejoin 2 setlinecap\n");
DO(m,M1) X[m]=-4.+.01*(m-.5);
DO(n,N1) Y[n]=-4.+.01*(n-.5);
for(m=-4;m<5;m++) {M(m,-5)L(m,5)}
for(n=-4;n<5;n++) {M(  -5,n)L(5,n)} fprintf(o,".006 W 0 0 0 RGB S\n");
DO(m,M1)DO(n,N1){      g[m*N1+n]=999;
                       f[m*N1+n]=999;}
DO(m,M1){x=X[m]; if(m/10*10==m) printf("x=%6.3f\n",x);
DO(n,N1){y=Y[n]; z=z_type(x,y);
//c=zex(z);
//c=1./(1.+z*z);
c=Student(z_type(2.,3.),z);
//c=Gau(z);

p=Re(c); q=Im(c);
//        if(p>-19 && p<19 &&  fabs(q)>1.e-12 && fabs(p)>1.e-12)
g[m*N1+n]=p;
//        if(p>-19 && p<19 &&  fabs(q)>1.e-12 && fabs(p)>1.e-12)
f[m*N1+n]=q;
       }}
fprintf(o,"1 setlinejoin 1 setlinecap\n");  p=20.;q=.3;
for(m=-2;m<2;m++)for(n=1;n<10;n+=1)conto(o,f,w,v,X,Y,M,N,(m+.1*n),-q,q);fprintf(o,".007 W 0 .6 0 RGB S\n");
for(m=0;m<2;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N,-(m+.1*n),-q,q);fprintf(o,".007 W .9 0 0 RGB S\n");
for(m=0;m<2;m++) for(n=1;n<10;n+=1)conto(o,g,w,v,X,Y,M,N, (m+.1*n),-q,q);fprintf(o,".007 W 0 0 .9 RGB S\n");
for(m= 1;m<5;m++) conto(o,f,w,v,X,Y,M,N, (0.-m),-p,p);fprintf(o,".02 W .8 0 0 RGB S\n");
for(m= 1;m<5;m++) conto(o,f,w,v,X,Y,M,N, (0.+m),-p,p);fprintf(o,".02 W 0 0 .8 RGB S\n");
               conto(o,f,w,v,X,Y,M,N, (0.  ),-p,p); fprintf(o,".02 W .5 0 .5 RGB S\n");
for(m=-4;m<5;m++)conto(o,g,w,v,X,Y,M,N,(0.+m),-p,p);fprintf(o,".02 W 0 0 0 RGB S\n");
fprintf(o,"showpage\n");  fprintf(o,"%c%cTrailer\n",'%','%');
fclose(o);  free(f); free(g); free(w);
      system("epstopdf Student2i3ma.eps");
      system(    "open Student2i3ma.pdf"); //for macintosh
//      system(    "open Student5ma.pdf"); //for macintosh
//      getchar(); system("killall Preview"); // For macintosh
}

Latex generator of label

% file Student5ma.eps should be generated with code above in order to latex the document below

\documentclass{standalone}
\usepackage{graphicx}
\usepackage{rotating}
\newcommand \sx {\scalebox}
\newcommand \rot {\begin{rotate}}
\newcommand \ero {\end{rotate}}
\begin{document}
\sx{2}{\begin{picture}(856,848)
\put(48,40){\includegraphics{Student2i3ma.eps}}

%\put(458,414){\sx{3}{\rot{90}$v\!=\!0$\ero}}
%\put(524,404){\sx{3}{\rot{90}$u\!=\!0.3$\ero}}
%\put(568,404){\sx{3}{\rot{90}$u\!=\!0.2$\ero}}
%\put(624,404){\sx{3}{\rot{90}$u\!=\!0.1$\ero}}
%\put(550,478){\sx{3}{\rot{29}$v\!=\!-\!0.1$\ero}}
%\put(562,394){\sx{3}{\rot{-38}$v\!=\!0.1$\ero}}
%\put(760,558){\sx{3}{\rot{9}$u\!=\!0$\ero}}
%\put(164,434){\sx{3}{$v\!=\!0$}}
\put(156,764){\sx{3}{\rot{90}$u\!=\!0$\ero}}
\put(350,424){\sx{3}{\rot{-4}$v\!=\!0$\ero}}
\put(662,424){\sx{3}{\rot{-27}$v\!=\!0$\ero}}
%\put(756,314){\sx{3}{\rot{-10}$u\!=\!0$\ero}}

\put( 26,830){\sx{4}{$y$}}
\put( 24,730){\sx{4}{$3$}}
\put( 24,630){\sx{4}{$2$}}
\put( 24,530){\sx{4}{$1$}}
\put( 24,430){\sx{4}{$0$}}
\put(-4,330){\sx{4}{$-1$}}
\put(-4,230){\sx{4}{$-2$}}
\put(-4,130){\sx{4}{$-3$}}
\put(16,6){\sx{4}{$-4$}}
\put(116,6){\sx{4}{$-3$}}
\put(216,6){\sx{4}{$-2$}}
\put(316,6){\sx{4}{$-1$}}
\put(442,6){\sx{4}{$0$}}
\put(542,6){\sx{4}{$1$}}
\put(642,6){\sx{4}{$2$}}
\put(742,6){\sx{4}{$3$}}
\put(836,8){\sx{4}{$x$}}
\end{picture}}
\end{document}

Notes

1. In routine «Student», number \( n \) of degrees of freedom of the Student Distribution has no need to be integer. It can be also complex.

2. The evaluation is supposed to return of order of 14 significant figures.

The detailed test should be appreciated.

Let us cover all functions used in the research

with the complex double implementations.

References

Keywords

«Factorial», «Student Distribution», «[[]]»,
