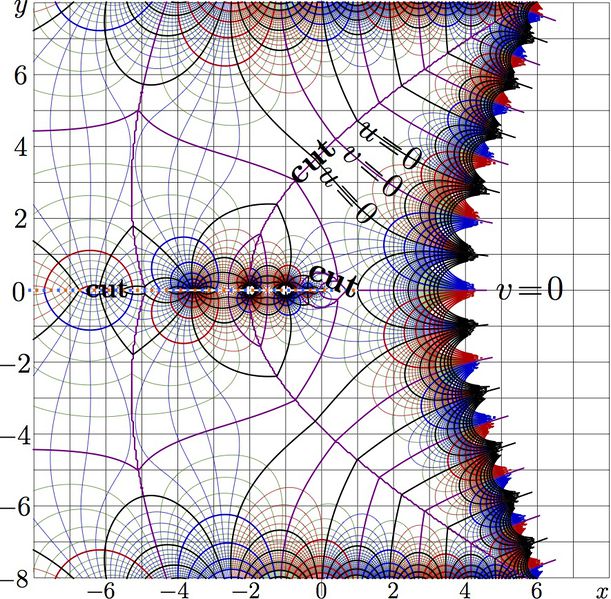

Complex map of function \(H(z)=h(h(z))\), which is second iterate of the half iterate of factorial.

The half iterate is evaluated through functions SuFac and AuFac:

\[ h(z)=\mathrm{Factorial}^{0.5}(z)=\mathrm{SuFac}\left( \frac{1}{2}+\mathrm{AuFac}(z)\right) \]

These functions are described in the Moscow University Physics Bulletin, 2010 ^[1]

The map is shown with lines of constant \(u\) and lines of constant \(v\);

\[ u+\mathrm i v=H(x+\mathrm i u) \]

In the right hand side of the map, the map coincides with complex map of Factorial.

The image represents figure 8.10 from the Russian version «Суперфункции» of the Book about Superfunctions, 2014 ^[2]

This map is used as Fig.8.11 at page 102 of the English version «Superfunctions», 2020 ^[3][4]
in order to show the range of validity of relation

\[ h(h(z))=z! \]

In particular this relation holds in the range

\[ \Re(z)\!>\!1\ ,\ |\Im(z)|\!<\!4 \]

C++ generator of map
