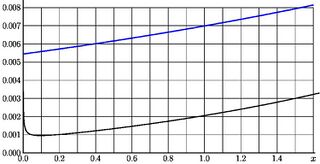

Zooming of picture

prepared for articles «Duration» and «Duration5».

The code is extracted from the original and slightly modified; the parameters are hardcoded in the generator below.

C++ generator

#include <stdio.h>
#include <math.h>
#include <stdlib.h>
//#include "ju24da.cin"

double Student(int n,double x)
{double c[11]={0.,
0.31830988618379,
0.35355339059327,
0.36755259694786,
0.37500000000000,
0.37960668982249,
0.38273277230987,
0.38499145083227,
0.38669902096139,
0.38803490887167,
0.38910838396603};
return c[n]*pow(1.+x*x/n, -0.5*(n+1));
}
//#include "Student.cin"

int main(){ int n,N=5; // The 6th case is not yet comleted. Here cases are numerated beginning with 0.
FILE *o; // Input and Output pointers.
double x,y,p,q,r; // coordinates and other dummy variales

double t,T; // mean valies of data for the Linear scale and the Logarithmic scale;
//double s,S; // estimates for standard error;
//double c,C; // parameters of Student for mean value;
//double v,V; // estimates for the standard error of the mean value (width of the distribution)
double c1,C1; // parameters of the Student Distribution for next measurement
//double w,W; //estimates for the widths of distribution for the next measurement

o=fopen("22.tex","w");
fprintf(o,"\\documentclass{standalone}\n");
fprintf(o,"\\usepackage{graphicx}\n");
fprintf(o,"\\usepackage{tikz}\n");
fprintf(o,"\\newcommand \\sx {\\scalebox}\n"); // no need: \Huge does the job
fprintf(o,"\\begin{document}\n");
fprintf(o,"\\Huge\n");
fprintf(o,"\\begin{tikzpicture}[scale=2]\n");
fprintf(o,"\\draw [line width=0.8] (0,0) grid (16,8);\n");
fprintf(o,"\\draw [line width=1.8] (0,8.4) -- (0,0) -- (16.1,0) ;\n");
fprintf(o,"\\draw [line width=1.8] (10,8) -- (10,0) ;\n");

for(n=0;n<9;n+=1) fprintf(o,"\\draw (0,%d) node[left] {\\sx{1.1}{%5.3f}};\n",n,0.001*n);
for(n=0;n<15;n+=2) fprintf(o,"\\draw (%d,0) node[below] {\\sx{1.1}{%3.1f}};\n",n,.1*n);
                 fprintf(o,"\\draw (%d,-.1) node[below] {\\sx{1.2}{\\(x\\)}};\n",n);


t= 13.2498380526675188;
c1= 4.8036796649277438;
for(n=0;n<163;n+=10)
{       x=.01*n; y=100*Student(N-1,(x-t)/c1)/c1;
x*=10.;
y*=10.;
        if(n==0) fprintf(o,"\\draw[line width=3, blue] (0,%6.3f)",y);
        else     fprintf(o," -- (%6.3f,%6.3f)",x,y);
//printf("curve 2: %6.4lf %6.4lf\n",x,y);
}
fprintf(o,";\n");

T=3.6595690198809008;
C1=0.5585221926655892;

for(n=1;n<204;n+=1)
{
x=.001*n*(1.+.04*n); y=100./M_LN2*Student(N-1,(log2(x)-T)/C1)/C1/x;
if(x>1.64) break;
x*=10.;
y*=10.;
if(n==1) fprintf(o,"\\draw[line width=2.4, black] (%6.3f,%6.3f)",x,y);
else     fprintf(o," -- (%6.3f,%6.3f)",x,y);
printf("curve 2: %6.4lf %6.4lf\n",x,y);
}
fprintf(o,";\n");

fprintf(o,"\\end{tikzpicture}\n");
fprintf(o,"\\end{document}\n");

fclose(o);
system("pdflatex 22.tex");
system("open     22.pdf");
}

Warning

This code has no input. Values of parameters are hardcoded. The code is designed to generate only one picture above.

References

Keywords

«C++», «Duration», «Duration5», «Latex», «Student Distribution»,
